Very good 3 element delta loop.

Jeroen 19EK666 - Holland


27DL3 3 el. Delta Loop SmarTech
Mounting operations




27DL3 3 el. Delta Loop SmarTech
Installed


__________________________






eBay Feedbacks


Delta Loop 2 el. SmarTech





The SmarTech 27DL3 is the right antenna for who demand the best.

Thanks to the low impedance design, the antenna reaches very important forward gain and F/B ratio levels.

An high efficiency Gamma Match adapts to 50 ohm the 27DL3 (relative dielectric constant εr=2.0 @1 MHz - best dielectric properties than fiberglass and polyethylene, dielectric strength 600kV). Power rating up to 5 kW (optional).


SmarTech Gamma Match


The antenna has been designed with NEC-based software, using integral method of moments MoM (Method Of Moments), and optimized with heuristic algorithms (PSO). SmarTech numerical modeling takes into account the presence of insulators, boom and joints, so as to eliminate radiation pattern distortions.

Prototype stages are realized by iterative cycles of measurements and optimizations, until the convergence between numerical model and performance measured on the physical model.


Convergence of functions - SmarTech

The "closed ring" configuration and DC Grounded property, give special low noise qualities to the antenna due to the absence of electrostatic currents. Therefore, the SmarTech 27DL3 maintains its efficiency even in conditions where noise makes unusable other antenna systems.

The absence of electrostatic currents, together with Gamma Match decoupling function, offer a special protection against electric shocks to the RTX antenna connector. They're often cause of dangerous damages (or even dstruction) to front-end stages.

Antenna's main structure is made of aluminum and stainless steel parts in order to operate entirely in the elastic field. Thus, the structure is elastic and at the same time very robust.

Unlike fiberglass structures, aluminum systems give a considerable duration and better response to wind loads. This allows to keep "intact" the antenna geometry (shape) and avoid sudden changes of impedance and decay of efficiency and general performances.


27DL3 SmarTech Antennas

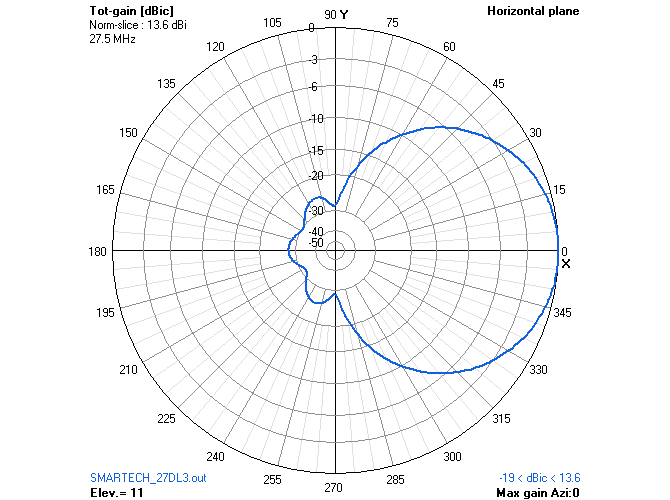

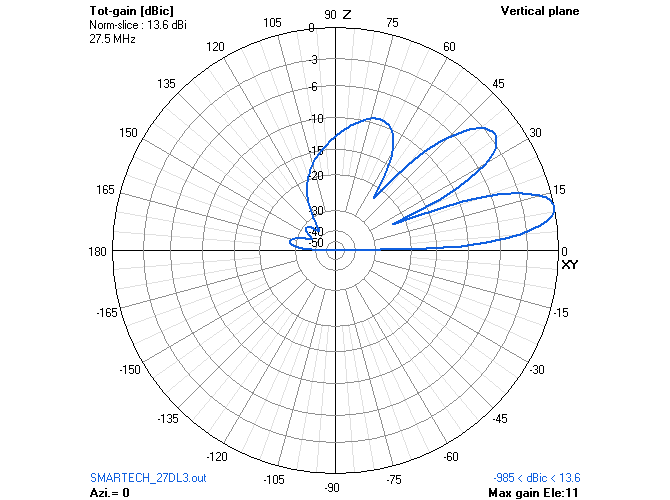

Thanks to its specific radiation patterns the 3 el. Delta Loop is suitable for both long distance DX and medium/short range contests. The antenna reaches its typical performances starting from small heights from the soil.

A SmarTech 27DL3 has gain, take off angles and boom-length/performances ratio comparable or better than a 4 el. Yagi.

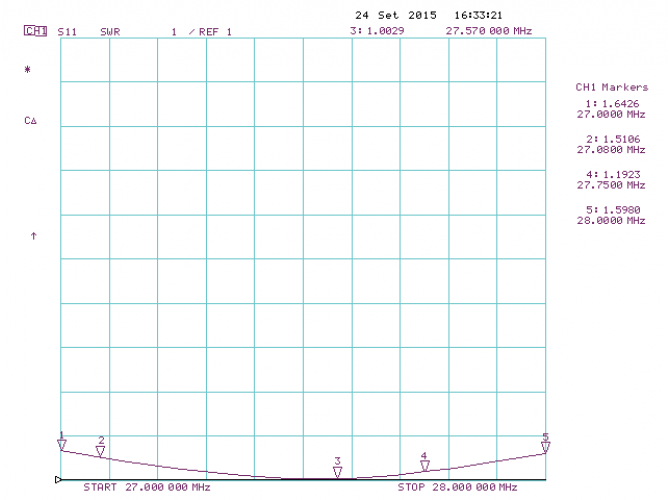

This antenna has a flat SWR curve covering 27 MHz at less than 1.5:1 SWR



SmarTech Deltaloop Antennas are designed to reach the best possible configuration of Forward Gain, F/B Ratio, F/S Ratio and Radiation Solid Clearence becouse of design resulting combinations are not affected by the 50 ohm native impedance constraint.
Therefore once the best antenna configuration is reached, a specific gamma match system provides the perfect 50 ohm impedance for the maximum power transfer and for the maximum system efficiency.

Delta Loop Antennas SmarTech




MATERIALS

The antenna main structure is made of aluminum alloy EN AW-6060/82 UNI 9006/1 (Anticorodal 60/100), which provides excellent long-term durability against the most severe weather (ice, water, UV rays, fine particles, acid rain), and better resistance to heavy wind load.

The Delta Loop is supplied with stainless steel parts AISI 304 (Inox Austenitic UNI / EN 10088) and steel S235JR2 (UNI 100 series), certified according to 2000/53 / CE + RoHs standards.

Insulators are made of Polypropylene PPC 5660, resistant to remarkable thermic excursions (certified for temperatures from -20°C to +130°C), with high load at break (ultimate tensile strength 25Mpa), excellent abrasion-resistant and volume resistivity > 1018

The horizontal wire is one of the most important components of the antenna. Here flows the highest current and RF radiation is maximum. Therefore the quality of the material most determines the system efficiency.

For this, SMARTECH has focused its utmost care and efforts for the production of a specific, special wire consisting of 99.99% pure copper with antioxidation coating and insulated with a special polymer.

The wire is also used for military and aerospace applications because of its excellent dielectric properties (insulation better than glass), abrasion and tear resistant, UV rays resistant, chemical solvent attack resistant. IDT 8 kV. Operating temperatures -65+150°C.


High-Quality cable - SmarTech Antennas


The antenna is made to obtain the maximum electrical efficiency, the best mechanical resistance and durability, thanks to its high quality materials. It is also suitable for installation in mountain areas and coastal (corrosive) areas.

SmarTech antennas are designed with the minimum necessary electrical/mechanical joints. So, parasitic resistances are the lowest possible so as to minimize unwanted RF dissipations.

In order to maintain its best performances, each Delta Loop is individually checked before shipment.


Costs include proper packaging, completion of customs documentation and shipping tracking 24/7. All products are shipped with the most important and reliable international couriers.








What Our Customers Say


Here it is then my 3 element delta loop. Fortunately, building up was very easy thanks to the good supplied description. In 2 hours it was on the rotator, SWR adjustment went fine. From 27,000 to 28,000 mhz the needle did not come out of the corner. Local I am 3 to 4 S points stronger. Long distances also went perfectly. The day after 22 and 3 division spurred 5/9 in the log. TX and RX perfect.

Jeroen 19EK666 - Holland


27DL3 3 el. Delta Loop SmarTech
Mounting operations




27DL3 3 el. Delta Loop SmarTech
Installed


__________________________






eBay Feedbacks


Delta Loop 2 el. SmarTech




ELECTRICAL SPECIFICATIONS
Gain 13.6dBi @11m (36ft)
Front/Back Ratio 28dB @11m (36ft)
Impedance 50 ohm
Power rating 2.5 kW (optional 5 kW)
VSWR min. @50 ohm 1.0:1
Matching Method Gamma Match
3 dB Horizontal Beamwidth 60° @11m (23ft)
PHYSYCAL AND MECHANICAL SPECIFICATIONS
Weight 14kg (35.20lb)
Boom length 3.40m (11.5ft)
Longest element 3.7m (12 ft)
Rotation radius 2.5m (8.19ft)
Projected area [F=Flat - C=Cylindrical] F = 0.46 m² (4.9 ft²) - C= 0.18m² (1.9 ft²)

3 el. DELTA LOOP (27DL3)

  • € 462.00
